The Center of Future Logistics Innovation

a2z COii is a micro fully autonomous delivery mobility system based on
level 4 autonomous driving technology, capable of carrying up to 300kg of cargo and traveling 240Km.

The Center of Future Logistics Innovation

a2z COii is a micro fully autonomous delivery mobility system based on level 4 autonomous driving technology, capable of carrying up to 300kg of cargo and traveling 240Km.

Maximum
Output

60kW

Driving Range

240km

Load
Capacity

300kg
Design

COii is a specialized autonomous vehicle, not a regular cargo truck, designed and engineered for efficiency and compatibility with the software.

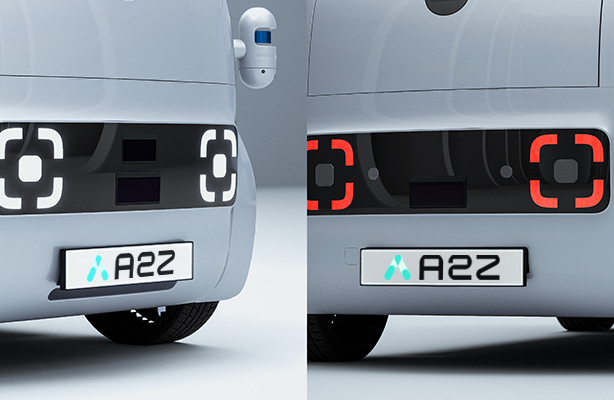

Full-LED Headlights


The most striking feature at the front of the a2z COii is undoubtedly the headlights. With a curved design that complements the vehicle's aesthetics, they consist of multiple LEDs that brightly illuminate the road at any time.

Maximum Output

60kW

Driving Range

240km

Load Capacity

300kg
Design

COii is a specialized autonomous vehicle,
not a regular cargo truck, designed and engineered for
efficiency and compatibility with the software.

Wing Door


The door is designed as a wing door that opens widely at the top for easy loading and unloading, and it also protects items from getting wet in the rain.

Loading Space


The spacious loading area can carry up to 300kg, and features partitions for efficiently organizing and transporting various items.

Display


The touch screen allows communication between the COii and the user, while encryption ensures security to prevent theft or loss, enabling a safe and convenient autonomous delivery service.

Performance

Non-stop All Day.

Battery
Capacity

40kWh

Driving
Range

10hr*

Full Charge Time

1hr

*At 30kph

HW/SW

We pursue more perfect level4 autonomous driving with redundant design for sensors and controllers.


Sensor Fusion

We enhance the stability of autonomous driving with a sensor fusion setup consisting of 4 LiDARs, 5 Radars, and 8 in-house developed Cameras.


Controller Redundancy

We enhance the stability of autonomous driving with a sensor fusion setup consisting of 4 LiDARs, 5 Radars, and 8 in-house developed Cameras.
Sensor Coverage

Performance

Non-stop All Day.

Battery Capacity

40kWh

Driving Range

10hr*

Full Charge Time

1hr

*At 30kph

HW/SW

We pursue more perfect level4 autonomous driving with redundant design for sensors and controllers.

Sensor Fusion

We enhance the stability of autonomous driving with a sensor fusion setup consisting of 4 LiDARs, 5 Radars,
and 8 in-house developed Cameras.

Controller Redundancy

Multiple controllers monitor each other for faults and autonomously determine the vehicle's risk level
to manage the vehicle.
Sensor Coverage
Specifications

COii



Specifications

COii

Capacity
Passengers
-
Seated
-
Standing
-

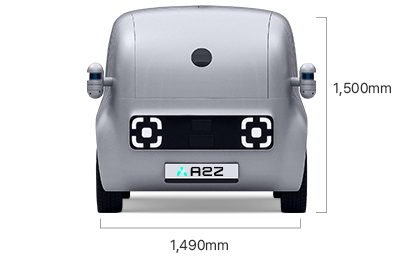

Dimensions
Length(mm)
3,480
Width(mm)
1,490
Height(mm)
1,500
Wheelbase(mm)
2,350
Min.Ground-clearance @CVW (mm)
165
Curb Weight (kg)
1,170
Pay Load
(kg)
300
Gross Vehicle Weight(kg)
1,470
Tire
130/75N14 (Airless)
Wheel Rims
Alloy
Engine
Drive Wheels
FWD
Engine
Electric
Power(kW)
15
Maximum Operating Speed(km/h)
50
Maximum Slope(%)
25
Energy
Battery
Li-ion
Theoretical Capacity(kWh)
40
Driving Range(km)
240
Time to Charge to 100%(hr)
5 (Slow) / 1 (Quick)
Charging Temperature (℃)
From 0~50
Operation Temperature(℃)
From -30~60
Steering
Steering Wheels
2
Turing Radius(m)
4.6
Equipment
Air conditioning(kW)
-
Heating(kW)
-
Doors
Double doors
Bodywork
Composite
Windows
-
Visual Information
7" Outside Touchscreen
Audio Information

Audio Speakers
Audible Warning Devices
Horn / Buzzer
Mobile Access Ramp for-
Passengers with Disabilities
-
Light / Rain Sensor
Automatic Wiper and Light Control (on/off)
Obstacles Loction and Detection
LiDAR
4
Radar
5
Camera
8
Odometry
Wheel Encoders
GNSS
Dual GNSS/4G/5G
IMU
1
Safety
Emergency Stop Buttons
2 Buttons
Emergency Intercom
1 Button Via Surveillance
Brake
Automatic, 3Ways (Service, Emergency, Parking)
Safety Pack
-
Safety Equipment
-
